Manufacturer: Garrett

Model: Ace 300

Daily: $58.00

Monthly: Call For Quote

Instructions: <Click Here>

Quantity: for a period of
day(s)

Additional Information

Want to take the kids on a treasure hunt, or did you simply lose your keys or wedding ring? The treasure ace 300 may be just what you need.
KEY FEATURES
Digital Target ID: 0 to 99 scale offers target information

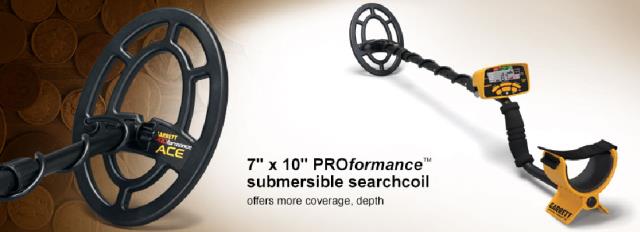

7" x 10" PROformance submersible search coil offers more coverage, depth
Higher frequency (8 kHz) provides better sensitivity on low and medium-conductivity targets (i.e. gold, lead)
Increased Iron Resolution: twice the iron resolution of an ACE 250, to help overcome target masking in iron-laden hunt sites
Adjustable Frequency to help eliminate interference
Camlocks for increased stem stability
Includes Pulse-Width Modulation audio: sharper, more responsive audio
Includes Electronic Pinpointing: precisely locates targets and speeds recovery
Notch Discrimination: Modify discrimination patterns based on what you are seeking.
Five Search Modes (plus Pinpoint)
Eight (8) Sensitivity/Depth adjustments
Coin Depth Indicator determines target depth
Expanded Target ID legend: includes indication of U.S. coin denominations
Highly Recommended - Coin Hunting, Competition Events, Dry Beach/Fresh Water Hunting
Recommended - Jewelry Hunting, Relic Hunting, Ghost Town Hunting, Prospecting
SPECIFICATIONS
Digital Target ID YES, 0-99 scale
Adjustable Frequency YES
Camlocks Included YES
Target ID Cursor Segments 12
Iron Discrimination Segments 4
Notch Discrimination YES
Search Modes 5 (plus Pinpoint)
Sensitivity/Depth Adjustments 8
Electronic Pinpointing YES
Frequency 8 kHz
Audio Tone ID Levels 3
Standard Searchcoil 7" x 10" PROformance
Length (Adjustable) 40" to 53" (1.016 m - 1.3462 m)
Total Weight 2.8 lbs. (1.27 kgs.)
Batteries 4 AA (included)
OPERATING INSTRUCTIONS: TREASURE ACE 300
The Treasure Ace detector is shipped assembled and ready to use. Make sure the first turn of the search coil cable is over the top of the stem. Adjust the stem length for your height, then study the following.
CONTROL FUNCTIONS
Power/Detection Depth Control: Rotate knob clockwise to turn detector on. Further rotation increases detection depth and sensitivity. This control allows you to detect at the greatest depth possible in relation to conditions that affect the sensitivity of the detector's signals. Turn the knob slightly to the left when necessary to reduce or eliminate sounds created by ground and/or atmospheric conditions.
Trash Elimination: This full-range discrimination control allows you to determine which junk items you wish eliminated from detection.
Headphone Jack: Located on the right side of the control panel. Headphones permit the operator to hear small and deep targets that might be missed when using audio from the speaker only.
Treasure Eye: An LCD at the top of the control panel which indicates target discovery and aids in the pinpointing of the target. It also monitors the condition of the batteries.
Audio: The audio level of the Treasure Ace 200 is factory set to be just into the silent range. Targets will not be missed at this level and there will be no loss of target signals.
Battery Test: When the power is turned on, the battery circuit is checked automatically and audibly. As the batteries begin to discharge the words LOW BATTERY will flash. At first slowly in the lower left corner of the LCD. Flashing will become more rapid as battery power is used. When the words appear constantly, it is time to replace the batteries. The (2) 9-volt batteries are located on the backside of the detector housing behind a sliding door. To replace the batteries, slide the door slightly to the left approximately inch. The door may then be removed to allow access to the batteries. Remove the old batteries and replace with high quality carbon, alkaline, or rechargeable batteries. Make certain the new batteries are installed properly, observing polarity. Replace the battery door and slide it closed. Always make certain that all parts fit snugly, but do not force.
OPERATING INSTRUCTIONS
Initial Settings: The Treasure Ace 200 has initial setting points located on the control panel. By rotating the knobs to these points the detector is adjusted for normal operation. As you become more familiar with the detector you may wish to make slight adjustments in the control settings to suit your personal preferences.
Set the control knobs to the INITIAL SETTING ( ) position. The detector is now operating in the TRASH ELIMINATION MODE. To operate the TRASH ELIMINATION MODE and eliminate junk targets, adjust the Elimination Control to the desired level for foil, nails, bottlecaps, or pulltabs to be eliminated.
Scan the search coil at about one to two feet per second. Maintain a one or two-inch search coil height above and level to the ground. All accepted metal targets produce an audio sound when the targets are below the coil. Dig all targets that produce an audio signal.
TARGET ACCEPTANCE & REJECTION
When a metallic object is accepted, the detector s speaker or headphone sound will increase from the factory-set audio threshold level. When a metal object is eliminated (rejected), no sound will be heard. Some rejected targets however, may cause the audio to break up or sound erratic. The following explains the various Trash Elimination Settings as shown by the icons placed around the control knob.
Trash Elimination Settings:
In the Trash Range most small rusty iron will be eliminated just above the All-Metal setting. Salt water is eliminated just below the bottlecap indicator. At the Bottlecap: foil, nails and larger rusty iron, will be eliminated. At the Pulltab: pulltabs, bottlecaps, foil, nails and rusty iron will be eliminated. Note: Nickels, rings, and many foreign coins and tokens may also be eliminated at this setting. Test typical trash items before operating.
Recovery/Pinpointing: Recovering a target is accomplished first by Pinpointing.
Pinpoint targets by drawing an imaginary X on the ground with the search coil at the place where the maximum sound occurs. You will also notice that the Treasure Eye LCD will move from the outer edges toward the center. When the cursors meet in the center the target is beneath the center of the search coil and the audio will be at its loudest. You will notice that the search coil cannot be held motionless above the target, the search coil must be moving slightly to detect the targets location. The next step in recovery usually involves digging. Always make as small a hole as possible. It is quicker, requires less digging, and is easier to fill. And, you should always fill your holes.
MAINTENANCE
Always remember that your metal detector is a sensitive electronic instrument. It is built to withstand rugged treatment in the outdoors. Use your Garrett detector to the fullest extent possible, and never feel that you have to baby it. Yet, always protect the detector and handle it with reasonable care.
Try to avoid temperature extremes as much as possible, such as storing the detector in an automobile trunk during hot summer months or outdoors in sub-freezing weather.
Keep you detector clean. Always wipe the housing after use, and wash the coil when necessary. Protect your instrument from dust and sand as much as possible.
Your search coil is submersible. The control housing is not! Never submerge the control housing and always protect it from heavy mist, rain or blowing surf.
Disassemble the stem and wipe it clean after use in sandy areas.
When storing longer than about one month, remove batteries from the detector.
REPAIR SERVICE
In case of difficulty, read this Owner s Manual again thoroughly to make certain your detector is not inoperable needlessly. Check batteries especially closely. They are the most common cause of detector failure .
You have checked with your dealer, particularly if you are not familiar with this type of detector.
MIND YOUR MANNERS
Filling holes and obeying no trespassing signs are but two requirements of a dedicated metal detector hobbyist. A sincere request that Charles Garrett makes to every user of one of his detectors is that each place searched be left in a better condition than it was found. Thousands of individuals and organizations have adopted this formal Metal Detector Operators Code of Ethics:
I will respect private and public property, all historical and archaeological sites and will do no metal detecting on these lands without proper permission.
I will keep informed on and obey all laws, regulations and rules governing federal, state and local public lands.
I will aid law enforcement officials whenever possible.
I will cause no willful damage to property of any kind, including fence, signs and buildings and will always fill holes I dig.
I will not destroy property, buildings or the remains of ghost towns and other deserted structures.
I will not leave litter or uncovered items lying around. I will carry all trash and dug targets with me when I leave each search area.
I will observe the Golden Rule, using good outdoor manners and conducting myself at all times in a manner which will add to the stature and public image of all people engaged in the field of metal detection.
WARNING!
Any metal detector may discover underground power lines, explosives or other items which when struck could cause personal injury. When searching for treasure with your detector, observe these precautions:
Do not hunt in an area where you believe there may be shallowly buried underground electric lines or pipes.
Do not hunt in a military zone where bombs or other explosives may be buried.
Avoid striking any line known to be or suspected to be carrying electrical power.
Do not disturb any pipeline, particularly if it could be carrying flammable gas or liquid.
Use reasonable caution in digging toward any target, particularly in areas where you are uncertain of underground conditions.
